Courses 41816, 41817 & 41818 - Available tools for the Final Assignment in CAM

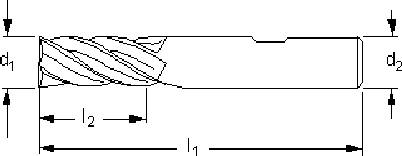

End mill type 1
| Tool no. | d1 | l2 | d2 | l1 | number of teeth |
| 3 | 10 | 45 | 10 | 80 | 3 |
| 6 | 4 | 14 | 4 | 50 | 3 |
| Note: l1 is length of tool outside toolholder, not the complete length of the tool | |||||

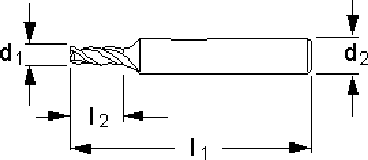

End mill type 2
| Tool no. | d1 | l2 | d2 | l1 | number of teeth |
| 8 | 2 | 10 | 6 | 54 | 3 |
| Note: l1 is length of tool outside toolholder, not the complete length of the tool | |||||

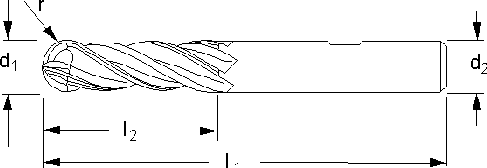

Ball mill
| Tool no. | d1 | l2 | d2 | l1 | r | number of teeth |
| 1 | 12 | 75 | 12 | 150 | 6 | 2 |
| 2 | 10 | 19 | 10 | 100 | 5 | 2 |
| 4 | 6 | 10 | 6 | 80 | 3 | 2 |
| 5 | 4 | 40 | 4 | 100 | 2 | 2 |
| 7 | 2 | 6 | 3 | 60 | 1 | 2 |
|
Note: l1 is length of tool
outside toolholder, not the complete length of the
tool
|
||||||
